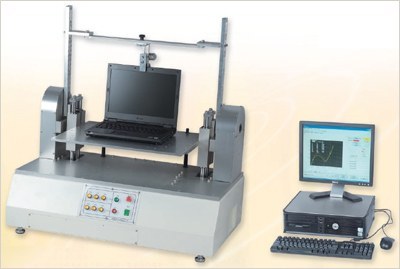

Shaft torque / angle tester
Model：SF-202
Test items NB.Hinge, Mobile Phone Hinge, reverse the trial finished, LCD Monitor and the perspective of the various torque test.
Product Characteristics
1. Each test point of view changes with the torque, and curves drawn curve.
2. Can store a list of graphics (torque, angle curve, torque attenuation map, check the Report).
3. Test conditions set by the computer screen.
4. Notebook and LCD Monitor height adjustable.
5. Specifications determine the minimum set up.
Product specifications
|
Maximum test torque
|
50 kgf.cm
|
|
Showed the smallest torque
|
0.01 kgf.cm
|
|
Testing point of view
|
1 ~ 180°
|
|
Significant point of the smallest
|
0.5°
|
|
Testing speed
|
1 ~ 180° / sec
|
|
Drive motor
|
Servo Motor
|
|
Size
|
860(W)x560(D)x920(H)mm
|
|
Power
|
95kg
|
